Summary

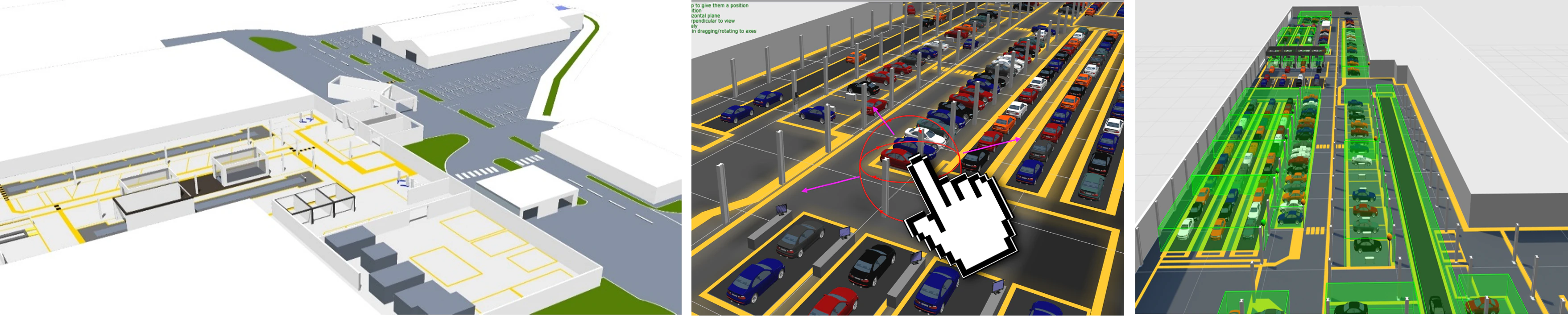

Building location-aware applications with SmartSpace is all about modeling the behavior and interaction of real-world objects in a real-world environment. The task of building and testing such applications is greatly simplified when the types and objects involved can be visualized and manipulated in a virtual representation of the real world. images of sites To this end, SmartSpace supports a site visualization feature that renders a graphical model of the environment and the application-specific objects within it. This is enabled by importing simple graphical elements (both images and 3D models) that can be assigned to object types or used as a backdrop for the site. These image primitives are called representations (or reps) in SmartSpace and can be arbitrarily attached to objects or used as layers to construct a “scene” representative of the real-world environment.

​
Features

Site visualization includes the following capabilities:
  • Importing standard graphics formats, including vector (SVG), raster (JPG, BMP, PNG), and 3D models (DAE) into a SmartSpace reps library
  • Setting the scale and offset of all reps to match the scale and coordinate system of the application environment
  • A scene visualization GUI which renders the environment scene and all located objects which have a representation assigned
  • The ability to drag, drop, position and lock “scene reps” in the site visualization
  • The ability to assign reps to object types so they appear in the site visualization
  • The ability to move objects “virtually” by using the mouse
  • The ability to visualize spatial relationships and containment events

​
Object representations

​
Introduction to Representations

SmartSpace allows you to create a digital model of a real-world environment that is a physical space filled with physical real-world objects. The digital model needs to be fed location data from sensors in order to keep virtual objects synchronized with their real-world counterparts. In so doing SmartSpace can measure important interactions between objects, and between objects and their environment. In order for humans to be able to describe what should happen and then later see what is happening in the digital model, it is necessary to give the model a visual and volumetric description. To do this, much like the world of computer graphics and gaming, SmartSpace uses visual representations to depict the real-world setting and the objects within it. SmartSpace also uses representations to portray objects to end users, for example in the Web maps feature of Visibility, so that, as with Google Maps, users gain context for the surrounding world, via the background map, and see the location of objects they’re interested in via some object marker representation. SmartSpace has two representation modes:
  • A 3D mode is available to build up your digital model, using representations for the environment and objects so that you as a human can interact with the model in a natural way. This interface is part of the main SmartSpace Config application.
  • A 2D mapping mode is exposed when you license the Visibility component of SmartSpace. This allows you to configure two-dimensional depictions of a setting, and the objects within it, to be delivered through HTML5-compliant browsers in the SmartSpace web map.

​
What are Representations, and When and How are they Used?

Representations, or reps for short, are everyday graphical types (pictures) that can be used to present objects in a visually representative way on a computer screen. SmartSpace supports a number of different graphical formats that can be used as representations. Details of these types, and importing, transforming and assigning them to objects is the subject of the following sections.

​
3D Graphic Types

SmartSpace uses an industry-standard 3D rendering engine to construct three- dimensional depictions of a scene and the objects within it. Being 3D, the objects in the scene and the background model must support a 3D modeling format. The standard format for the underlying 3D engine used in SmartSpace is COLLADA. COLLADA is an open-standard XML Schema that is widely supported by both open- source and licensed 3D editing tools. In particular, COLLADA DAE is a standard export format of many 3D editing tools including Blender, SketchUp and 3D Studio Max. A description of the process for creating a COLLADA file from an SVG is given in [Editing an SVG and converting it to COLLADA](../../../ITResources/ITDocs/Graphics/SVGtoCOLLADA/SVG-to-COLLADA- conversion.htm). Using a 3D editing tool such as Blender you can create models and apply appropriate textures to create a realistic 3D environment. An example of adding textures to 3D objects and importing them into SmartSpace is given in [Texture baking 3D models](../../../ITResources/ITDocs/Graphics/TextureBaking/texture- baking-3D-models.htm).

​
2D Graphic Types

All user-facing SmartSpace applications use 2D visualization that is entirely web-based and has no third party plugin or hardware dependencies. In this way, SmartSpace applications are readily available to large sets of users by leveraging the 2D rendering capabilities of their browsers and the client- server nature of the SmartSpace Platform to deliver the right visualizations at the right time. To ensure consistent performance across devices and browsers, it is important to keep the complexity of representations as low as possible. SmartSpace supports both raster and vector 2D image formats, including BMP, JPG, PNG, GIF and SVG. Oftentimes it is necessary to convert or create these files from unsupported formats, such as the CAD formats DXF and DWG used to record the major structural elements of a building or site. In such cases, Ubisense has a recommended third-party tool-chain for generating SmartSpace- compatible images from these formats. Examples of the preparation of graphics for use in SmartSpace are given in [Graphics in SmartSpace](../../../ITResources/ITDocs/Graphics/graphics- introduction.htm).

​
Default and Specific Representations

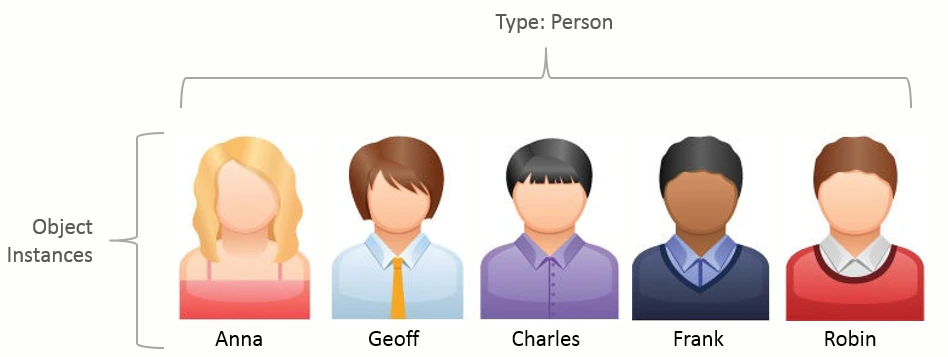

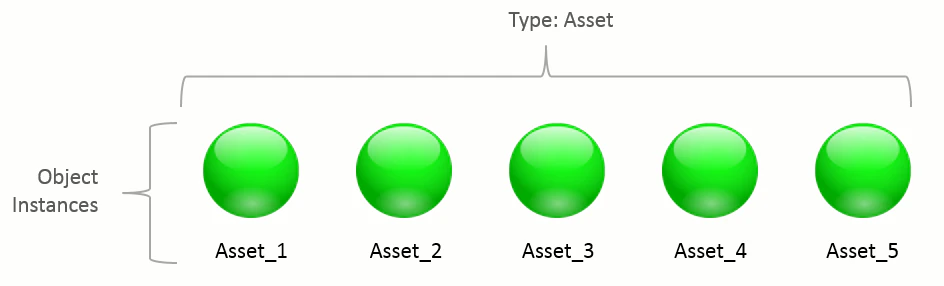

Representations can be assigned to objects in one of two ways; either generically by the Type of the object such that all objects appear the same. Alternatively, reps can be assigned to specific Object instances such that each object is uniquely identifiable. In some applications, objects are assigned a rep from a collection which references some property of the object type. For example, car objects might have a “model” property which is used to assert which rep from a collection of car model reps is used. Similarly, people objects might be displayed using an image from a collection of role reps, e.g. doctor, nurse, patient. Reps can be assigned manually using SmartSpace Config, or programmatically using the Business rules engine (if licensed). This allows you to give every object a visual depiction in the SmartSpace model. Representations are typically 3D for visualization in the SmartSpace digital model, or 2D for visualization in the Web maps feature of the Visibility component (if licensed).

​
Decorations and Representation Modes in the web map

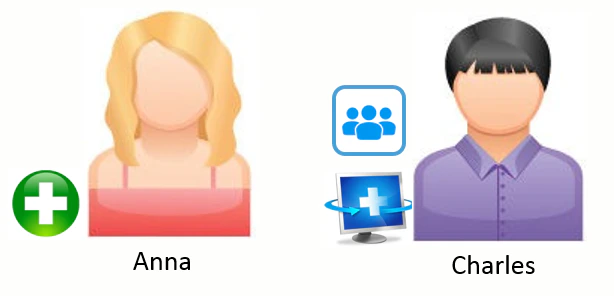

To see an object in the SmartSpace world model or on the SmartSpace web map, it must be assigned at least one representation. When objects are viewed by end-users on the web map, SmartSpace provides a helpful extension which allows many different representations to hang off the main object representation. Such visual augmentations that overlay the primary object rep are called decorations in SmartSpace. Decorations offer a valuable way to communicate status information alongside objects when they are displayed on the web map. In the following example, decorations provide an easy way of highlighting that Anna is a First Aid Officer and that Charles is the office IT Manager. Additionally, decorations help to indicate that Charles is currently in a meeting and is therefore unavailable. Decorations can be assigned manually, in which case they persist with the object indefinitely, or can be assigned dynamically based on state changes in the underlying world model. To change decorations, and even the base object representation dynamically, you need to have the Business rules engine licensed and appropriate business logic defined to execute the change at an appropriate time. In doing this, the appearance of all objects is dynamically programmable based on any state information held within SmartSpace. In order to attach and switch between many different representations for a single object, it is necessary to reference each representation assignment uniquely. This is achieved through Representation Modes.

​
Representation Modes

Representation modes provide a means of displaying different representations of objects depending on context. An object, or object type, can be assigned a different representation in each mode. Web map searches then specify which modes to use to display their results. Rep modes can either be set once for the lifetime of the object or can be set and unset dynamically based on the current state of the object.

​
Representation Modes in Use

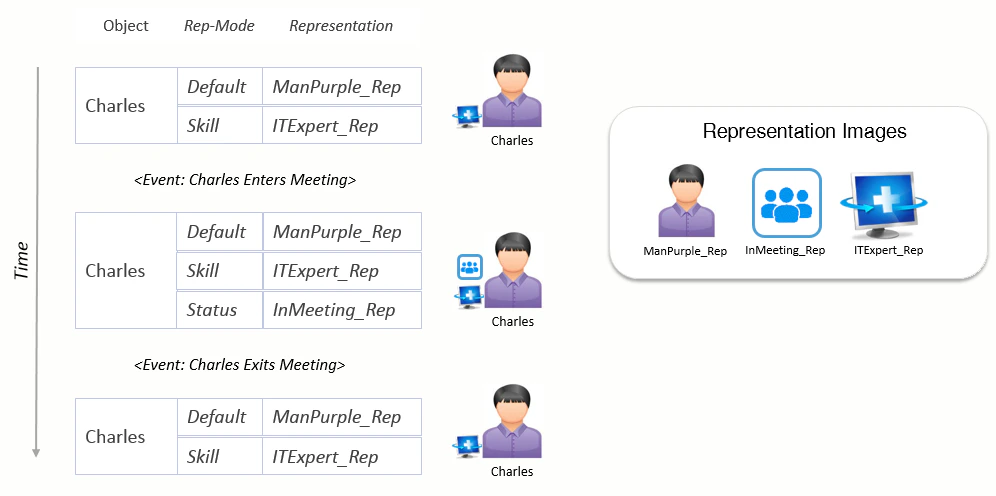

In this example an object (Charles) is assigned a representation by setting a Rep mode called Default with a value of ManPurple_Rep. Additionally, a property (attribute) of the Person type (of which Charles is an instance) has a value indicating that Charles is an IT Expert. It might be useful to convey this property alongside Charles when his location is shown on a map. This is enabled by setting an additional Rep mode called Skill to ITExpert_Rep. Since Charles has some useful skills for his organization, he’s likely to be in demand. Other employees might find it useful to know whether Charles is available or not before they try to engage him for assistance. In this case they would find it very useful to see a status indicator alongside Charles’s representation on the map. Since Charles’s Status is likely to vary throughout the day, it is a dynamic property that will change according to whatever events are detected that have some relation to Status. An example event would be if Charles entered a meeting. In this case the Status Rep mode could be set to InMeeting_Rep for the duration of the meeting and unset when Charles exits the meeting. This example is a simple depiction of how decorations can be used to visually communicate useful characteristics and status for any object shown on the SmartSpace web map. In addition to representation modes being dynamically settable, they can also be filtered based on the Role of the user viewing the object’s location on the map.
